IN-ST01 Grey Aluminum Portable Truck Scale 10t,20t,40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A

    Buy cheap IN-ST01 Grey Aluminum Portable Truck Scale 10t,20t,40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A from wholesalers

    Buy cheap IN-ST01 Grey Aluminum Portable Truck Scale 10t,20t,40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A from wholesalers
    • Buy cheap IN-ST01 Grey Aluminum Portable Truck Scale 10t,20t,40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A from wholesalers
    • Buy cheap IN-ST01 Grey Aluminum Portable Truck Scale 10t,20t,40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A from wholesalers

    IN-ST01 Grey Aluminum Portable Truck Scale 10t,20t,40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A

    Ask Lasest Price
    Brand Name : Inntronic
    Model Number : IN-ST01
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    IN-ST01 Grey Aluminum Portable Truck Scale 10t,20t,40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A

    IN-ST01 10t 20t 40t portable Four-channels Static vehicle axle scale truck scales Defend grade: IP66


    Customized Language Portable Truck Scales IP66 With High Grade Aluminum Suitcase


    Rated load: 10,20,40(t)

    Static comprehensive error(%F.S): 0.1-0.3

    Features
    1, Stable test results – nearly test results in the repeat testing for one axle
    2, Can store as many as 10000 vehicle testing records;
    3, Four channels that can be connected to Four weighing pad and develop to be static weighing,display four wheel weight,,each axle weight and gross weight
    4, Dispay uints: kg
    5, Max load per platform 10000 kg, total load per 4 platforms 40000 kg
    6, Precision:0.3%
    7, Power supply: built-in 6V/10AH leading acid accumulator, and can connect with DC source (7.5V/3A or 12V/3A)

    Parts including:

    • 4pcs portable weighing pads
    • 8pcs slope
    • Four channels-Static weighing indicator
    • RS232 port is used to communicate with PC and printer

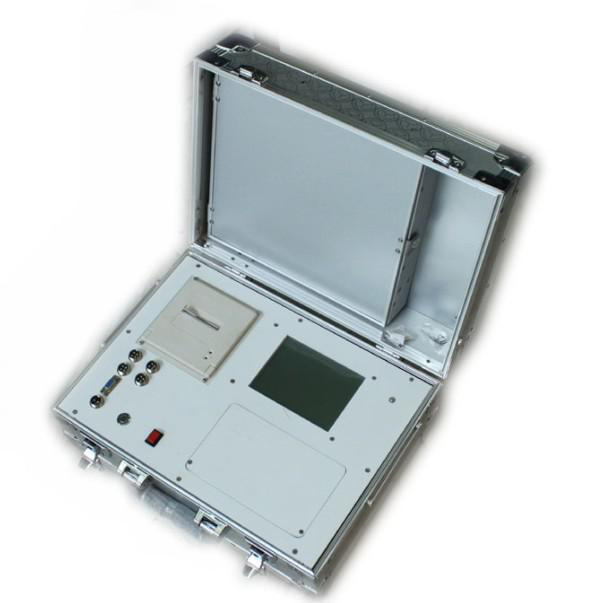

    Four channels-Static weighing indicator

    size: 400mm X 300mm X 180 mm netweight: 8KG
    material: ABS structural foam

    • Multiple channel, one weighing indicator Max. can be connected to eight weighing pad
    • Micro printer is embedded in the instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight, truck weight, overload and executive organization
    • Floating technology is adopted to remove zero drift.
    • Touch screen LCD Monitor, Numbered options,easy
    • RS232 port is used to communicate with PC
    • The instrument can work independently. And it also can upload testing data to computers
    • mature inquiry and statistic function
    • The auto power supply system can be used for providing electricity and charging



    weighing pads

    size:714 mm(L) X419mm(W)X 18mm(H) netweight: 10KG/pcs
    materials: High strength Aluminum alloy

    Parts:IN-ST01 weighing pad(The weighing pad’s model can be changed according to customer’s request)


    slope


    size:714mm (L) X150mm(W) X 18(H) mm netweight: 5 KG/pcs

    materials: High strength Aluminum alloy

    Features:
    Aluminum-alloy; Ultra thin weighpad design;
    Easily mounted / unmounted slope; Hermetically sealed, suits different environment;
    Works both dynamically and statically;
    Can be used to measure axleweight and whole vehicle weight when four weigh-pads are connected together.

    Parameter

    Rated output(mV/V): 1.0±0.1Insulation resistance(MΩ): ≥5000(100VDC)
    Non-linearity(%F.S): 0.2Compensated temp.range(℃): -10~+50
    Error on corners(%F.S): 0.2Use temp.range(℃): -30~+80

    Repeatariy(%F.S): 0.05

    Temp.effect on zero(F.S/10℃): 0.03
    Zero balance(%F.S): ±1Temp.effect on span(F.S/10℃): 0.05
    Excitation voltage(VDC): 9~15Safe overload(%): 120
    Recommended voltage(V): 10Ultimate overload(%): 150
    Defend grade: IP66Netweight(kg): 10(20t), 30(40t)
