    IN-XK3190-DS3 20mA electronic Floor truck Scale Weight Load Cell digital Indicator Controller IP66 0.8A AC/DC 12V

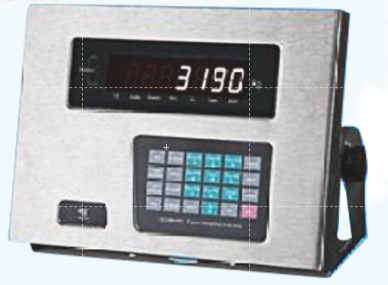

    IN-XK3190-DS3 Weighing indicator Controller for electronic floor scale


    IN-XK3190-DS3 Floor Scale Weighing Indicator Controller , Programmable Load Cell Controller

    Information

    proname :IN-XK3190-DS3

    Introduction

    Weighing indicator IN-XK3190-DS3 is widely applied in electronic floor scale,electronic truck scale ,static railway scale and so on alike static weighing system equipped with 1~16 digital load cell.


    Feature:
    ◆ AC/DC power supply
    ◆ Interface adopts new magnet-proof technology
    ◆ With optional interface
    (a) Printing data separate module
    (b) Digital output module
    (c) 4~20mA module

    Standard function

    ◆ Able to connect several sorts of digital load cells using Yaohua protocal
    ◆ Auto/semi-auto/manual angle correction
    ◆ Digital load cell communication address modification function
    ◆ Single load cell and single angle data checking function
    ◆ With two divisions auto switch function
    ◆ Non-linearity correction and calibration tolerance correction
    ◆ Time power-off function
    ◆ Weighing data save/check/delete/ protection in case of power off
    ◆ Standard RS232C (RS422/RS485 optional) communication interface
    ◆ Standard scoreboard interface with 20mA current loop method
    ◆ Standard parallel print interface
    ◆ Able to save 1000 vehicle ID and corresponding tare weight,201 cargo ID and corresponding cargo name,1001 weighing records
    ◆ Able to back up and recover various parameters of indicator, reliable and practical

    Technical parameter

    ◆ Digital load cell connection
    Connection method: RS485, capatiable for both four and six wires
    Connection distance: About 1000 meters
    Connection quantity:1~16
    Communication protocol of load cell: YAOHUA
    Load cell power: DC 12V,0.8A(Max)
    ◆ Display
    Display method: 7 bits super bright LED display, 10 indications
    ◆ Clock: real clock
    ◆ Scoreboard interface
    Signal: 20mA current loop,serial. Baud rate: 600 Transmission distance: ≤2000 meters
    ◆ Printer interface
    Available for wide line printer:LQ-300K,KX-P1131,KX-P1121 ,
    DS-300 Thermal micro-printer:POS58,T58D
    Optional panel type micro printer
    ◆ Serial communication interface
    Standard interface: RS232C (RS422/RS485 optional)
    ◆ Power supply:AC187~242V;49~51HZ
    DC power supply: (outside) rechargeable 12V battery
