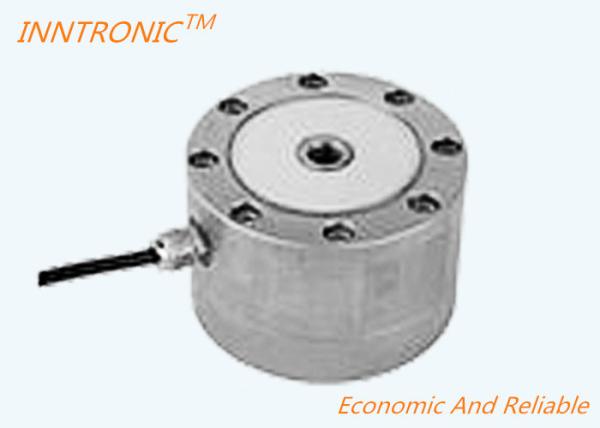

    Load Cell IN-LFSC 20t Round DISK type weighing Alloy Steel weight force sensor For Silo Scale 2mv/v IP67

    Ask Lasest Price
    Brand Name : inntronic
    Model Number : IN-LFSC
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000pcs/month
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    Load Cell IN-LFSC 20t Round DISK type weighing Alloy Steel weight force sensor For Silo Scale 2mv/v IP67

    IN-LFSC 1t to 20t Tension and Compression Load Cell for silo scale

    12m Cable Round Load Cell 150% Maximum Safe Overload With Strong Reset Ability for silo scale


    special features:


    • accuracy grade:C3
    • sensitivity:2.0±0.006
    • zero balance:±1%

    Load cell Parameter:


    ItemsUNITTECHNICAL DATA
    Rated capacities(Emax)T1, 2, 3, 5, 10, 20
    SensitivitymV/V2.0±0.006
    Total errorF.S±0.05%(2, 3, 5T); ±0.1%(10, 20T)
    Creep error(30min)F.S±0.03%
    Zero balanceF.S±1%
    TCOF.S/℃±0.02% / 10
    TC SPANF.S/℃±0.02% / 10
    Input impedanceΩ400±10
    Output impedanceΩ352±3
    Insulation impedance≥5000
    Temperature range, operating-30~ +70
    Maximum safe overloadF.S150%
    Ultimate overloadF.S200%
    Excitation, recommendV10-12V DC
    Excitation, maximumV15V DC
    Protection classIP67
    ConstructionAlloy Steel
    CablemLength: 12
    mmDiameter: φ6
    WiringExc+( Green) Exc-(Black) Sig+(White) Sig-( Red)

    Load Cell Dimension
