Load Cell IN-ZSWG 50t alloy steel Column Compression Load Cell weight force sensor for Axle Truck Scale IP68

    Buy cheap Load Cell IN-ZSWG 50t alloy steel Column Compression Load Cell weight force sensor for Axle Truck Scale IP68 from wholesalers

    Buy cheap Load Cell IN-ZSWG 50t alloy steel Column Compression Load Cell weight force sensor for Axle Truck Scale IP68 from wholesalers
    • Buy cheap Load Cell IN-ZSWG 50t alloy steel Column Compression Load Cell weight force sensor for Axle Truck Scale IP68 from wholesalers

    Load Cell IN-ZSWG 50t alloy steel Column Compression Load Cell weight force sensor for Axle Truck Scale IP68

    Ask Lasest Price
    Brand Name : inntronic
    Model Number : IN-ZSWG Column Load Cell
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000pcs/month
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    Load Cell IN-ZSWG 50t alloy steel Column Compression Load Cell weight force sensor for Axle Truck Scale IP68

    IN-ZSWG 10t to 50t Canister compression column load cell for truck scale

    Railway Scale Waterproof Load Cell Double Shake Column Structure Digital Sensor for truck scale


    Product Details

    FEATURES:

    ● Capacity 10t to 50t

    ● Double shake column structure digital sensor

    ● Hight degree of sealing

    ● OIML C5 approved

    ● Optional stainless steel, alloy steel available

    ● Optional fixed joint connector(ZSWF),Single air plugs(ZSWFB),Dual air plugs(ZSWFG)


    APPLICATION:

    ● Truck Scale

    ● Hopper Scale

    ● Axle Load Scale

    ● Railway Scale

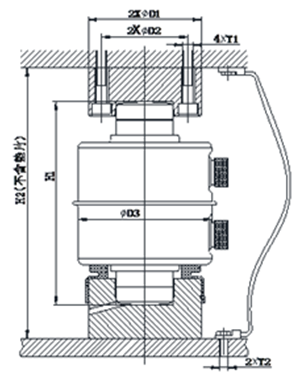

    Rated capacityD1D2D3H1H2T1T2
    10t,20t,30t,40t,50t,60t83.56499150200M8M8

    SPECIFICATION:
    Rated capacity: 10ton to 50tonMaximum safe overload: 150% OF R.C
    Combined error: ±0.02% F.SUltimate safe overload: 200% OF R.C
    Non-repeatability: ±0.01% F.SRecommended Excitation: 7 to 15V DC
    Non-linearity: ±0.01% F.SEnvironment protection: IP68(ZSWGC);IP69K(ZSWGB,ZSWG)
    Hysteresis error: ±0.02% F.SCommunication BPS: 9600/19200
    Temperature effect on zero: ±0.012% F.SCommunication Mode: RS 485
    Temperature effect on output: ±0.1% F.SMaterial: alloy steel+Stainless housing (ZSWG-AD,ZSWGB-AD,ZSWGC-AD) 100% made by stainless (ZSWG-ADSS,ZSWGB-ADSS,ZSWGC-ADSS)
    Compensated temperature range: -10 to +40℃cable: length__16meter;diameter__φ8.8mm
    Operating temperature range: -30 to +70℃

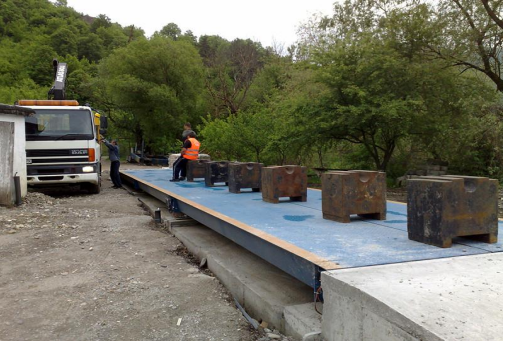

    Install application environment:



    A load cell is a highly accurate and reliable device used to measure weight or force. It is commonly used in industrial and commercial applications where precise weight measurements are required. Load cells are designed to convert the force applied to them into an electrical signal that can be easily measured and recorded.

    At its core, a load cell consists of a metal body with strain gauges attached to it. When a force is applied to the load cell, the metal body deforms slightly, causing the strain gauges to change their resistance. This change in resistance is then converted into an electrical signal that can be read by a computer or other device.

    Load cells come in a variety of shapes and sizes, and can be used in a wide range of applications. They are commonly used in weighing scales, industrial machinery, and even in medical equipment. Load cells are known for their high accuracy and reliability, making them an essential tool for many industries.

    If you are looking for a high-quality load cell, it is important to choose a reputable supplier. Look for a supplier that offers a wide range of load cells, and that has a proven track record of providing reliable and accurate products. With the right load cell, you can ensure that your weight measurements are always accurate and reliable, helping you to improve your processes and increase efficiency.
