    Load Cell IN-60048 Stainless Steel IP68 Tension 500Lb Weight force Sensor For platform weight bench scale 2.0 mV/V

    Ask Lasest Price
    Brand Name : inntronic
    Model Number : IN-60048
    Payment Terms : L/C
    Delivery Time : 15-30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Load Cell IN-60048 Stainless Steel IP68 Tension 500Lb Weight force Sensor For platform weight bench scale 2.0 mV/V

    IN-60048 Single Point Load Cell for platform scale

    Fatigue Resistance Single Point Load Cell , Weighing Machine Using Load Cell for platform scale
    Interchangeable brand :
    • NCI Mark V Load Cell
    • Sensortronics 60048SS Load Cell
    • Weigh-Tronix Mark V Load Cell

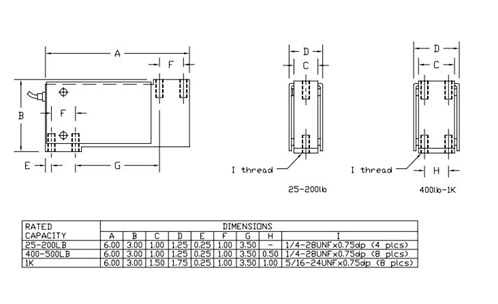

    RATED CAPACITYDIMENSIONS
    ABCDEFGHI
    25-200LB6311.30.2513.5-1/4-28UNF*0.75dp(4pics)
    400-500LB6311.30.2513.50.51/4-28UNF*0.75dp(8pics)
    1K631.51.80.2513.515/16-24UNF*0.75dp(8pics)

    Capacities25LB, 50LB, 100LB, 200LB, 400LB, 500LB, 1K LB
    Rated Output2.0 mV/V
    Safe Overload150%FS
    Excitation Voltage10-20V AC/DC
    Input Resistance385 ± 10 OHMS
    Output Resistance350 ± 3 OHMS
    Zero Balance±1.00%FS
    Seal TypeEnvironmentally sealed, potted IP67
    Non-linearity±0.03%FS
    Hysteresis±0.02%FS
    Repeatablity±0.02%FS
    Creep±0.03%FS
    Compensated Temperature Range:-10℃ - +40℃
    Temperature Effect on Zero±0.02%FS/℃

    Temperature Eff


    ect on Output

    ±0.001%FS/℃
    Insulation Resistance>5000 MEGOHMS
    Load Cell Cable4 Conductor, 10 FT
    Load Cell Wiring

    Green +EXC

    Black –EXC

    White +SIG

    RED -SIG

    Braid/Yellow: Shield
