    50kg Tension And Compression Load Cell 2.5-5V

    Ask Lasest Price
    Brand Name : Innovation
    Model Number : INFS-022
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 1000pcs per month
    • Product Details
    • Company Profile

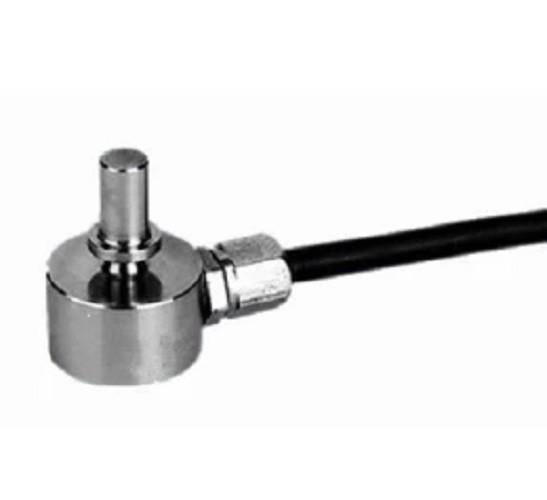

    50kg Tension And Compression Load Cell 2.5-5V

    Screw Tension And Compression Force Sencor mini Load Cell


    Screw Tension And Compression Force Sencor Stainless Steel mini Load Cell for robotic hands


    INFS-022 Screw Tension and Compression Force Sencor Load Cell


    Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.



    Capacity5-50kgMaterialStainless Steel
    Rated Output1.0-1.5mV/VOutput Impedance350±3Ω
    Zero Balance±2%F.S.Insulation≥5000MΩ/100VDC
    Non-linearity1.0-5%F.S.Recommended Excitation2.5-5V
    Hysteresis1.0%F.S.Maximum Excitation10V
    Repeatability1.0%F.S.Compensated Temp Range-10~60ºC
    (30)Creep (30min)0.1%F.S.Operating Temp Range-20~80ºC
    Temp Effect on Output0.1%F.S./10ºCSafe Load Limit120%
    Temp Effect on Zero0.1 %F.S./10ºCUltimate Load Limit150%
    Input Impedance350±5ΩCable Sizeφ(2-3)x 3m
    Wire ConnectionEx + : Red; Ex - : Black; Sig + : Green; Sig - : White
